LP700

A German-made reciprocating triplex plunger pump.

Features:
Spheroidal cast iron crankcase with sight glass and vented dipstick; forged, through-hardened, ground and polished crankshaft; bronze connecting rods; hardened stainless steel plunger bases; stainless plungers with hardened metal coating; nitrile seals with fabric reinforcing; stainless steel valves and machined stainless steel manifold.

  • LP700 Exploded View
  • LP700 Parts List
  • LP700 Torque Specifications
  • Giant Industries Limited Warranty
  • LP700 Installation Instructions
  • LP700 Repair Kits
  • Troubleshooting Guide

SPECIFICATIONS

U.S. Metric
Flow 7.9 GPM 30.0 L/min
Maximum Discharge Pressure 7250 PSI 500 bar
Crankshaft Speed 1000 RPM
Inlet Pressure 90 PSI 6 bar
Maximum Temperature 104 °F 40 °C
Plunger Diameter 0.71″ 18 mm
Stroke 1.65″ 42 mm
Crankshaft Diameter 1.38″ 35 mm
Crankshaft Rotation Top of Pulley Towards Manifold
Crankshaft Mounting Either Side
Inlet Ports (2) 3/4″ BSP
Discharge Ports (2) 1/2″ BSP
Crankcase Capacity 100 fl. oz. 3.5 L
Weight 173 lbs. 62.7 kg
NPSHR 8.0 mWs
Key Component Material
Manifold Machined Stainless Steel
Plungers Solid Ceramic Oxide
Valves Duplex Steel
Seals Nitrile With Fabric Reinforcing
Gear End Spheroidal Cast Iron

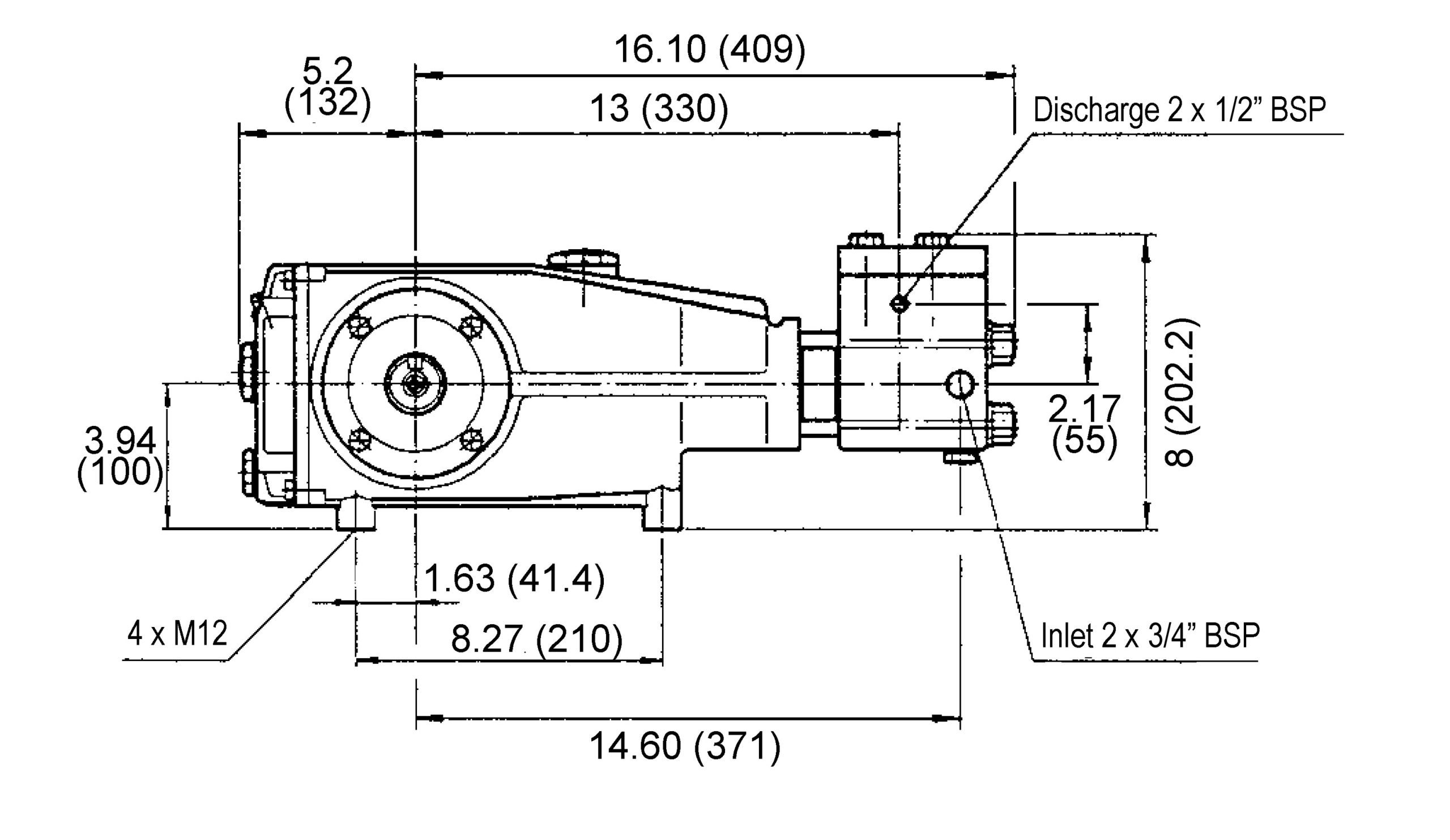

Click the image to enlarge


HORSEPOWER SPECIFICATIONS

RPM GPM 3000 PSI 5000 PSI 6000 PSI 7250 PSI
500 3.9 8.1 13.5 16.3 19.6
600 4.7 9.8 16.3 19.6 23.7
700 5.3 11.0 18.4 22.1 26.7
800 6.3 13.1 21.9 26.3 31.7
900 7.1 14.8 24.7 29.6 35.7
1000 7.9 16.5 27.4 32.9 39.8

Horsepower Requirements

The ratings shown are the power requirements for the pump. Gas engine power outputs must be approximately twice the pump power requirements shown above.

We recommend a 1.15 service factor be specified when selecting an electric motor as the power source. To compute specific pump horsepower requirements use the following formulas:

Electric HP = (GPM X PSI)/1450

as HP = (GPM X PSI)/1100

*Engine power varies based on horizontal or vertical orientation, as well as by makes and models from each manufacturer.


REPAIR KITS

ITEM# PART# DESCRIPTION Qty.
Plunger Packing Kit – Part #09736
33A 08087 V-Sleeve 3
36 06359A Pressure Ring 3
36A 13241 Guide Ring 3
36B 05263 Support Ring 3
37 06360 V-Sleeve 6
38 13422 Sleeve Support Ring 3
39 13424 Leakage Seal 3
Valve Assembly Kit – Part #09491
40 07214 O-Ring 9
41 06361 Support Ring 9
44A 04395 Tension Ring 6
44B 04396 Valve Spring 6
44C 04147 Valve Plate 6
44D 04121 Valve Seat 6
44E 04123 O-Ring 6
Oil Seal Kit – Part #09577
31 07133 Oil Seal 3

Repair Kits Available

The repair kits listed to the right are available for this pump. If you need further information about these repair kits, or have questions about other specific parts for your pump, please contact you local Giant distributor or contact Giant customer service.

PUMP CATEGORIES:
Service & Repair

Giant provides service on each pump and accessory that we sell. Many basic repair procedures are covered in the Giant repair manual. For all other questions on service or repair needs please contact your local Giant distributor.
