LP200

A German-made reciprocating triplex plunger pump.

Features:
Spheroidal cast iron crankcase with sight glass and vented dipstick; forged, through-hardened, ground and polished crankshaft; bronze connecting rods; hardened stainless steel plunger bases; solid ceramic plungers; nitrile seals with fabric reinforcing; stainless steel valves and cast aluminum bronze manifold.

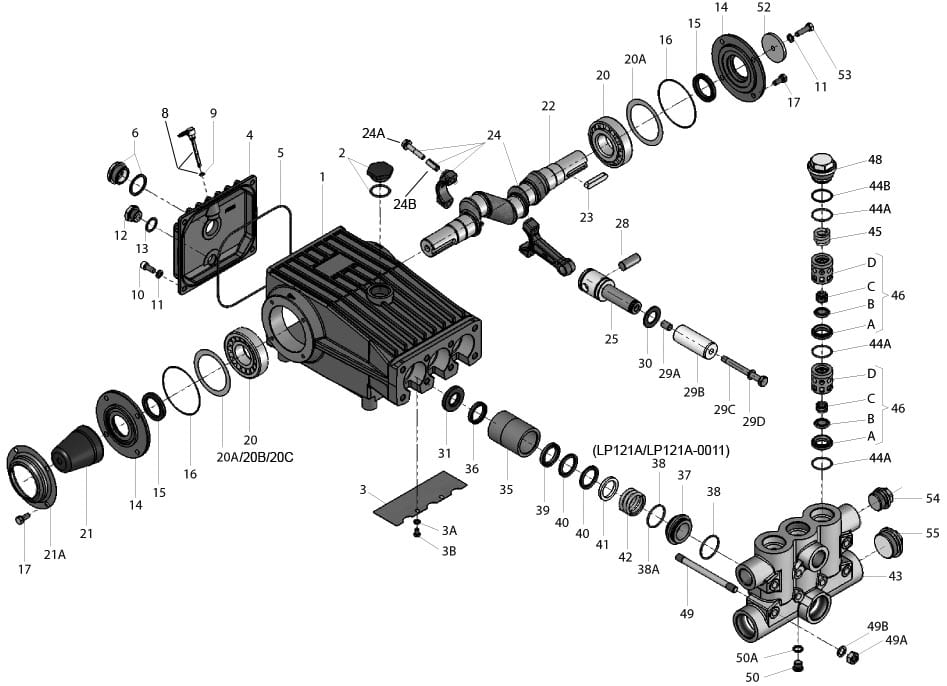

  • LP200 Exploded View
  • LP200 Parts List
  • Giant Industries Limited Warranty
  • LP200 Installation Instructions
  • LP200 Repair Instructions
  • Troubleshooting Guide

SPECIFICATIONS

U.S. Metric
1000 RPM
Max Flow (Continuous) 19.0 GPM 72.1 L/min
Max Discharge Pressure (Continuous) 2900 PSI 200 bar
Inlet Pressure 90 PSI 6.2 bar
Plunger Diameter 1.10″ 28 mm
Stroke 1.65″ 42 mm
Max Temp @ 1000 RPM 140 °F 60 °C
Max Temp @ 500 RPM 160 °F 71 °C
Crankshaft Diameter 1.38″ 35 mm
Crankcase Capacity 118 fl. oz. 3.5 L
Weight 119 lbs. 54 kg
Inlet Ports (3) 1-1/2″ BSP
Discharge Ports (3) 1″ BSP
Shaft Rotation Top of Pulley Towards Manifold
Shaft Mounting Either Side
Key Component Material
Manifold Aluminum Bronze
Plungers Solid Ceramic Oxide
Valves Duplex Steel
Seals Nitrile With Fabric Reinforcing
Gear End Spheroidal Cast Iron

Click the image to enlarge


HORSEPOWER SPECIFICATIONS

RPM GPM 1000 PSI 1500 PSI 2000 PSI 2900 PSI
500 9.5 6.6 9.9 13.2 19.1
640 12.2 8.4 12.7 16.9 24.5
750 14.3 9.9 14.8 19.8 28.7
805 15.3 10.6 15.9 21.2 30.8
865 16.4 11.4 17.1 22.8 33.1
920 17.5 12.1 18.2 24.3 35.2
1000 19.0 13.2 19.8 26.4 38.3

Horsepower Requirements

The ratings shown are the power requirements for the pump. Gas engine power outputs must be approximately twice the pump power requirements shown above.

We recommend a 1.15 service factor be specified when selecting an electric motor as the power source. To compute specific pump horsepower requirements use the following formulas:
Electric HP = (GPM X PSI)/1450
as HP = (GPM X PSI)/1100


*Engine power varies based on horizontal or vertical orientation, as well as by makes and models from each manufacturer.


REPAIR KITS

ITEM# PART# DESCRIPTION Qty.
Plunger Packing Kit – Part #09307
36 13228 Leakage Seal 3
28 07140 O-Ring 3
38A 12055 O-Ring 3
40 13115 V-Sleeve 6
Valve Assembly Kit – Part #09196
44A 07150 O-Ring 9
44B 06266 Support Ring 3
46A 07064 Valve Seat 3
46B 07063 Valve Plate 3
46C 07062 Valve Spring 3
Oil Seal Kit – Part #09577
31 07133 Oil Seal 3

Repair Kits Available

The repair kits listed to the right are available for this pump. If you need further information about these repair kits, or have questions about other specific parts for your pump, please contact you local Giant distributor or contact Giant customer service.

PUMP CATEGORIES:
Service & Repair

Giant provides service on each pump and accessory that we sell. Many basic repair procedures are covered in the Giant repair manual. For all other questions on service or repair needs please contact your local Giant distributor.
