A surface cleaning pump for large areas

With 241 HP (180 kW) of power, this series of pumps works well as a large area surface cleaning tool

The K18000-3G is built with forced lubrication; this allows the pump to run on a continuous basis.  Primarily design with industrial cleaning, such as large ship surfaces, it can be combined with the Wall Crawler (SCH3000) and with 241 HP (180 kW) of available power, the performance of the pump far exceeds that of the K11000-3G series.  It fits nicely between the K 11000 and K 25000 series pumps and is suitable for a variety of applications.  As with most Kamat pumps, it has the modular component system, which provides many advantages with regards to wear and serviceability, such as pump heads which can quickly be changed as well as plunger sets for different flow and pressure requirements.

WARNING: This product might contain a chemical known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Specification US Metric
Minimum Flow6.3 GPM24 L/min
Maximum Flow137.9 GPM522 L/min
Minimum Pressure1595 PSI110 bar
Maximum Pressure50764 PSI3500 bar
Speed500 RPM
Power Consumption241 BHP180 kW

Horsepower Specifications

Images Open in new Window/Tab

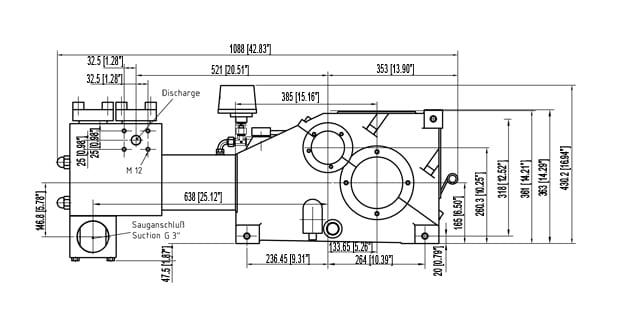

  • Dimensional Drawing (Side) Open

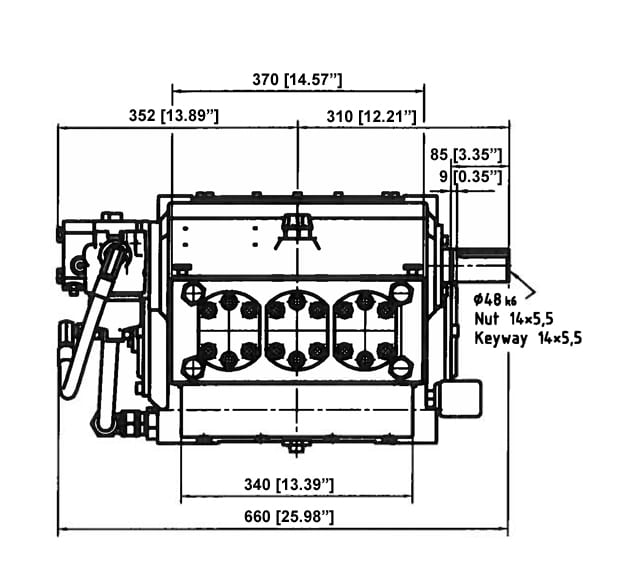

  • Dimensional Drawing (Front) Open

Literature

Documents open in new window/tab.

  • K 18000-3G Literature
