Featured Image for GP7145

A German-made reciprocating triplex plunger pump.

Features:
Spheroidal cast iron crankcase with sight glass and vented dipstick; forged, through-hardened, ground and polished crankshaft; bronze connecting rods; hardened stainless steel plunger bases; solid ceramic plungers; nitrile seals with fabric reinforcing; stainless steel valves and nickel-plated Spheroidal cast iron manifold.

WARNING: This product might contain a chemical known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Specification US Metric
Flow47.5 GPM180 L/min
Maximum Discharge Pressure3000 PSI200 bar
Crankshaft Speed750 RPM
Power65.5 HP48.8 KW
Intermittent Flow60 GPM227 L/min
Intermittent Discharge Pressure3000 PSI200 bar
Intermittent Crankshaft Speed947 RPM
Intermittent Power Consumption95.0 HP70.9 kW
Max Temperature140 °F60 °C
Inlet Port Size(2) 2-1/2" NPT
Discharge Port Size(2) 1-1/4" NPT
Plunger Diameter1.77 in.45 mm
Stroke2.0 in.52 mm
Maximum Inlet Pressure145 PSI10 bar
Crankshaft Diameter1.9 in.48 mm
Crankshaft RotationTop of Pulley Towards Manifold
Key Width0.6 in.14 mm
Crankshaft MountingEither Side
Crankcase Oil Capacity US1.6 gal 6.0 L
Weight374 lbs.170 kg
Manifold Material Nickel-Plated Cast Iron
Crankcase Material Spheroidal Cast Iron
Plunger Material Solid Ceramic Oxide
Valve Material Stainless Steel
Seal Material Nitrile with Fabric Reinforcing
The repair kits listed to the right are available for this pump. If you need further information about these repair kits, or have questions about other specific parts for your pump, please contact you local Giant distributor or contact Giant customer service.
ITEM# PART# DESCRIPTION Qty.
Plunger Packing Kit – Part #09603
38A 13156 O-Ring 3
38B 06258 O-Ring 3
39A 13290 Grooved Ring 3
42 13294 V-Sleeve 9
Oil Seal Kit – Part #09221
32 07624 Radial Shaft Seal 3
33A 07627 O-Ring 3
Inlet Valve Assembly Kit – Part #09659
51 05594 Inlet Valve Assembly 1
56A 07658 O-Ring 1
56B 07635 Support Ring 1
Large Discharge Valve Kit – Part #09660
52 05600 Discharge Valve Assembly 1
55 05647 Valve Spacer 1
56A 07658 O-Ring 1
56B 07635 Support Ring 1
Small Discharge Valve Kit – Part #09661
51B 05450 Valve Spring 1
51C 05247 Valve Plate 1
51D 05596 O-Ring 1
52F 05599 O-Ring 1
56A 07658 O-Ring 1
56B 07635 Support Ring 1

Horsepower Specifications

RPM GPM 800 PSI 1000 PSI 1500 PSI 2000 PSI 3000 PSI*
300 19.0 10.5 13.1 19.7 26.2 39.3*
400 25.3 14.0 17.4 26.2 34.9 52.3*
500 31.7 17.5 21.9 32.8 43.7 65.6*
600 38.0 21.0 26.2 39.3 52.4 78.6*
750 47.5 26.2 32.8 49.1 65.5 98.3*
789 50.0 27.6 34.5 51.7 69.0 103.4*
947* 60.0* 33.1* 41.4* 62.1* 82.8* 124.1*

*Intermittent Duty Only

Images Open in new Window/Tab

  • Dimensional Drawing (Side) Open
  • Dimensional Drawing (Front) Open

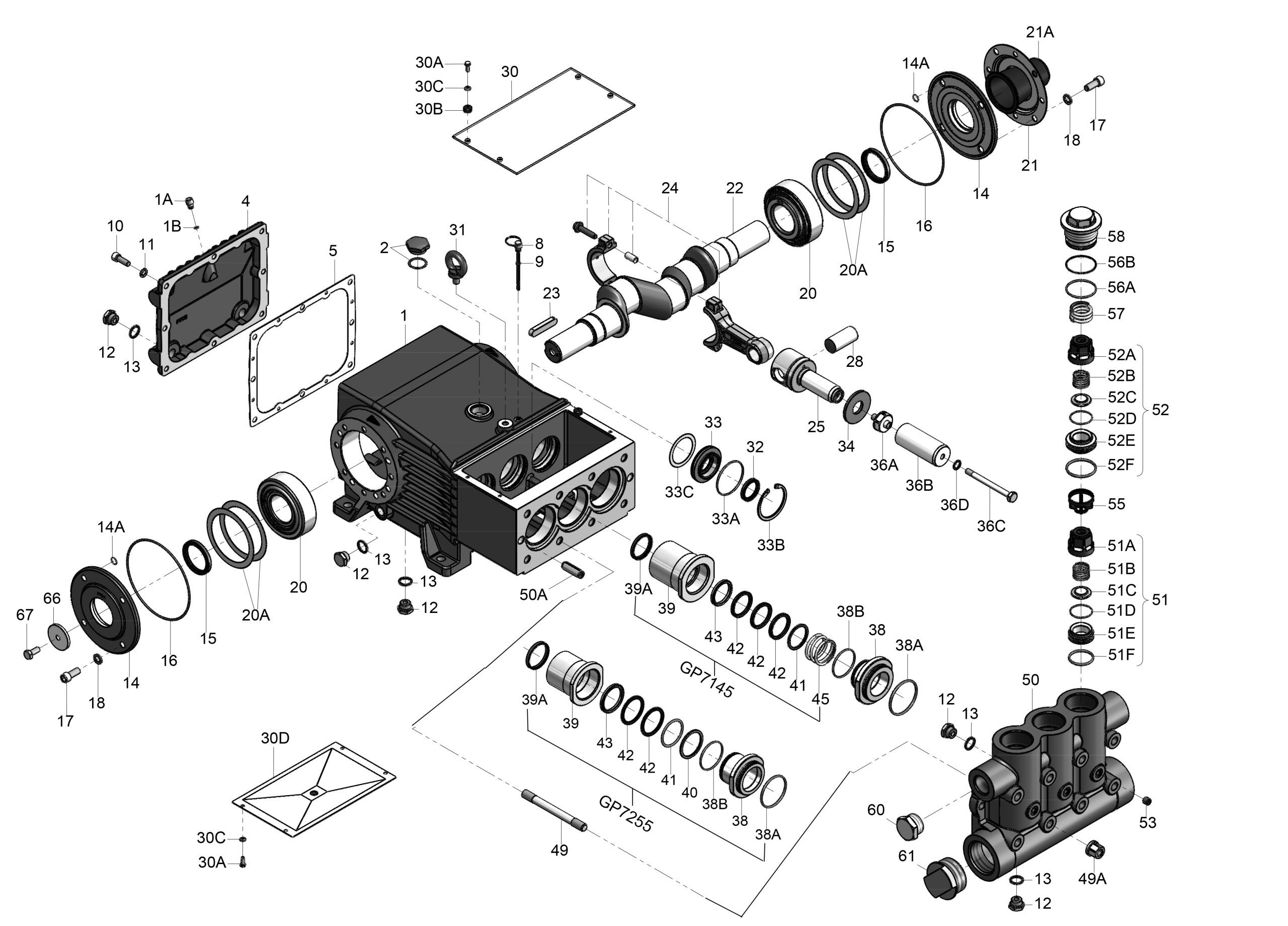

  • GP7145 Exploded View
  • GP7145 Parts List
  • GP7145 Torque Specifications

Literature

Documents open in new window/tab.

  • Giant Industries Limited Warranty
  • GP7145 Installation Instructions
  • GP7145 Repair Instructions
  • Troubleshooting Guide
